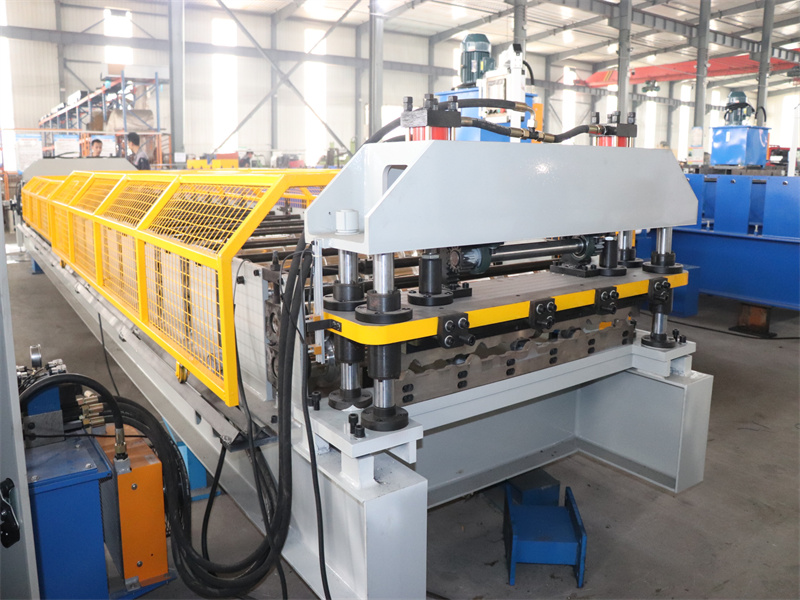

5 Ribs Roof Roll Forming Machine Application

metal roof making machine 5 rib panel has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet.The roofing tiles sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.This type of sheet can be widely used in plant, house, storage and simple wall.





Profile drawing:







Premium 5 Rib Panel Specifications:

1. Pretty appearance
2. Applications – Roof and Wall
3. Coverage Width – 36″
4. Rib Height – 3/4″
5. Rib Spacing – 9″ on center
6. Minimum Slope – 3:12
7. Panel Attachment – Exposed Fastening System
8. Gauge – 29 and 26
9. Texture – Smooth
10. Various special model
11. mature foreign trade team
12. professional designing team

metal roof making machine 5 rib panel

Develivery time:25-35 days

Model:HX-760 Trapezoidal Roof

Payment:30% T/T deposit,70% balance before shipping

Voltage:380V 50HZ 3Phase or based on customer’s need .

Warranty :2 years for machinery warranty|



The technical specifications of the 5 Rib Roofing Machine：

NO	Name	Specifications
1	Coil	Width:1000mm
2	Raw material thickness	0.3-0.8mm
3	Decoiler	5T Hydraulic decoiler(Different capacity for option,manual one for option)
4	Roller station	18 stations
5	Roller material	45# steel with quenched treatment
6	Shaft diameter	80mm
7	Shaft material	45# steel with tempered
8	Dimension(l*w*h):	5500mm*1250mm*1200mm
9	Motor power	5.5kw motor
10	Machine frame	400H steel welded
11	Cutting type	Hydraulic cutting
12	Hydraulic power	5.5kw
14	Cutting blade material	Cr 12 High Grade Steel
15	Forming speed	8-10 m/min (not including cutting time)
16	Control system	PLC
17	Brand	PLC:Delta/Siemens/Mitsubishi Touch screen:Delta/Siemens/Mitsubishi Encoder:Omron
