Description of F5M Drip Edge Roll Forming Machine

Protects and covers roof edge. Directs run-off into gutters. For new construction and re roofs. Used along gutter line of roof edge. Acts as a starter strip for a true edge to align shingles. The face, with its kick-out at the bottom, diverts rain water from the facia board helping to eliminate rot. Standard gauge. 5/8″ overhang, throw out included in face size. 2-1/3″ X 10′ – 1-1/2″ FACE.

• Provides protection and coverage for the roof edge.
• Channels runoff directly into the gutters.
• Suitable for both new constructions and re roofing projects.
• Installed along the gutter line of the roof edge.
• Serves as a starter strip, ensuring shingles are properly aligned.
• The face features a kick out at the bottom to divert rainwater away from the fascia board, reducing the risk of rot.
• Made from standard gauge material with a 5/8 inch overhang included in the face size.

Advantages of  F5 1/2 Hemmed Drip Edges:

Water Management: Drip edges effectively direct water from the roof into the drainage system, preventing pooling or seepage beneath the eaves and protecting the building’s structure from potential water damage.

Corrosion Prevention: By preventing water from cascading off the roof edge onto exterior walls or foundations, drip edges reduce moisture exposure, thereby lowering the risk of corrosion.

Support for Roof Structure: Drip edges aid in redirecting water away from the roof’s edge, decreasing water pressure at the eaves and reducing stress on the roof, which can extend its lifespan.

Enhanced Aesthetics: Drip edges contribute to the visual appeal of the roof edge, providing a cleaner appearance that enhances the overall look of the building.

Ice and Snow Mitigation: In colder regions, drip edges play a crucial role in preventing the accumulation of ice and snow at the roof’s edge, reducing load and potential damage to the roof while promoting safety.

Profile Drawing:

Currently, by combining various profiles, metals, dimensions, and special drip edge shapes, there are over a thousand options available for both residential and commercial buildings.

To simplify the selection process, our sketch highlights the most common or “standard” dimensions for roof drip edges used in North America:

• Length: 10 ft.
• Width: 2 3/4″, available in varying sizes up to at least 6″ to cover gaps and ensure sufficient nailing surface on the roof deck.
• Height (Depth): 1 5/8″, with options available in a wide range of dimensions extending up to several inches.
• Lip Extension (Drip Leg): 1/2″, with sizes ranging from 1″ to 2″.
• Recommended Drainage Gap: Approximately 1/4″, spaced from the fascia board.
• Minimum Extension on Roof Decking: 2″ (per IRC R905).
• Minimum End Laps: 4″, offset by at least 6 ft.
• Fastening Interval: Every 12″.
• Typical Metal Thickness: Steel options include 0.010″ and 0.013″; aluminum options range from 0.012″ to 0.024″.

Roof drip edges are available in nearly fifty different profiles, sizes, and shapes to accommodate various roof types, slopes, and other specific roofing needs.

F5M Drip Edge Roll Forming Machine working flow:

Despoiler-Feeding Material-Roll Forming-Servo Cutting-Automatic stacker



The Technical Specifications Of The F5M Drip Edge Roll Forming Machine Rolling Forming Machine：

F5M Drip Edge rolling forming machine
Series	Details	Parameter	Comment
Material	Raw material	Steel	Customer confirmed
	Material thickness	0.4-0.6 mm
Decoiler	Structure	Manual passive type	The standard one to match the production line
		Single head type
	Loading capacity	2.5 Tons
	Coil inner diameter	450-550 mm
Roll forming machine	Guiding device	Placed on the machine by seller
	Rolling shaft material	45# STEEL
	Shaft diameter	50 mm
	Roller material	GB-Cr12
	Rolling station	12 stations
	Work speed	45 m/min
	Machine structure	Vertical memorial arch frame
	Machine basic frame	Steel plate welded
	Bearing	Roller bearing	Famous brand of Harbin
	Work power	7.5 kw
	Transmission	By gear	With cover
	Safety cover	available
	Appearance	Good appearance with no burrs in steel body nor traces of rust or defects in painting. Good electrical and hydraulic cable organization Car painting make the machine more glossy	We confirm each detail can match the standard, ensure the machine is 100% new!
	Decoiler, we can change to hydraulic one if you need.

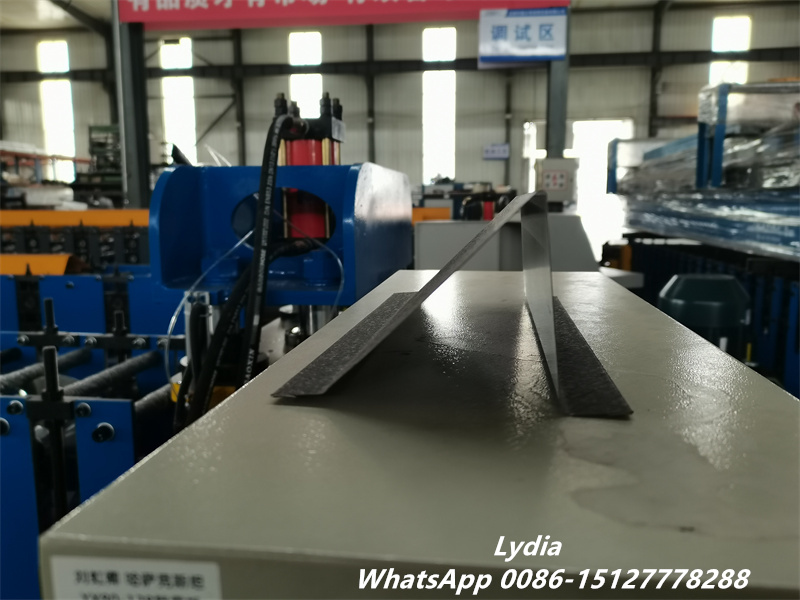

More pictures of the machine：
