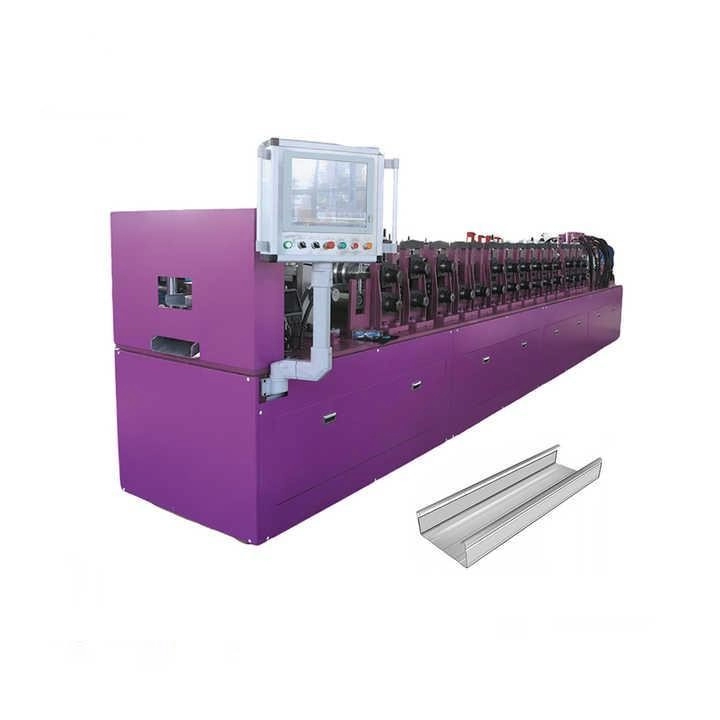

Light Gauge Steel Framing Machine Specification

Width(web): 89mm

Height(flange): 41mm

Lip:7-12mm The machine match with 3 sets punching die(75~96/138-159/180-200)mm

Material Thickness:0.75-1.2mm,Q235、Q345、G550, hot-rolled galvanized steel strip

Speed: 48m/min

Advantages of Light Gauge Steel Framing Machine

1. High Speed and Precision
   This machine offers efficient production with remarkable speed and accuracy, ensuring consistent output quality in every batch.
2. Smarter Production Process
   By uploading the designed installation drawings directly to the computer, the machine enables automated and large-scale production. It can produce walls, identical models, or customized designs according to specific needs. Furthermore, the finished products can be marked with codes, packaged, and made ready for straightforward assembly, saving time and effort.
3. Easy Adjustment for Versatility
   To simplify production processes, the machine allows width adjustments without changing the mold when the waist height remains constant. For instance, adjustments within 17mm—such as producing 75-92mm products—require no mold replacement, while wider ranges, like 75-100mm, necessitate changing the mold. This design greatly enhances efficiency and reduces downtime during transitions.

Layout Drawing:

Technical Parameters:

Light Gauge Steel Machine Parameters
Raw Material	PPGI
Material Thickness	0.8-1.0mm
Machine Structure	Vertical Arch Frame Structure
Material of shafts	40Cr After conditioning processing, fine grinding
Forming speed	About 30m/min
Voltage	380v 50hz 3phase Or As local customer request
Work power	servo motor(7.5KW)
Cutting type	Hydraulic servo cutting
Cutting blade material	Cr12Mov, with acutting lifespan exceeding 1 million times.

Roll Forming Device

1.Main Shaft Diameter: p80mm. made of 45# round steel.

2.Roller Material: Heat-treated, precisionmachined, chrome-plated, mirror-polished.

3.Cold Bending Forming: The process of coldbending steel material coils into shape.

4. Arch structure: more stable, can produce higher precision products

Good Performance G550 Z275 0.8-1.2mm Light steel frame machine What is the investment prospect of light steel frame machine? light steel frame machine (also known as LGS frame machine) is used for LGS structure houses. The profiles used in this kind of house are produced by cold bending forming methods. These profiles are assembled into a structural steel frame by screws and bolts at the construction site, and can also be applied to various wall and floor structures. After the frame has been lapped, the building can be completed by installing an outer layer of insulating material or painting concrete. The system can be applied to all characteristic types of buildings, such as schools, residences, offices, hotels, hospitals, factories and warehouses, etc.
